The MSI MPG Z590 GAMING CARBON WIFI is MSI’s flagship gaming motherboard, designed for gamers seeking top-tier performance and cutting-edge features. This review dives into the specifications and design of this high-end motherboard, exploring what makes it a compelling choice for demanding PC builds.

MSI MPG Z590 Gaming Carbon Wifi Motherboard

Design and Features

Unlike some manufacturers who reuse older box designs, MSI has completely redesigned the packaging for the Z590 GAMING CARBON WIFI, replacing the Z490’s car tail design with a more abstract, modern aesthetic. The rear of the box showcases the board’s key features, highlighting its premium components and capabilities.

MSI MPG Z590 Gaming Carbon Wifi Packaging

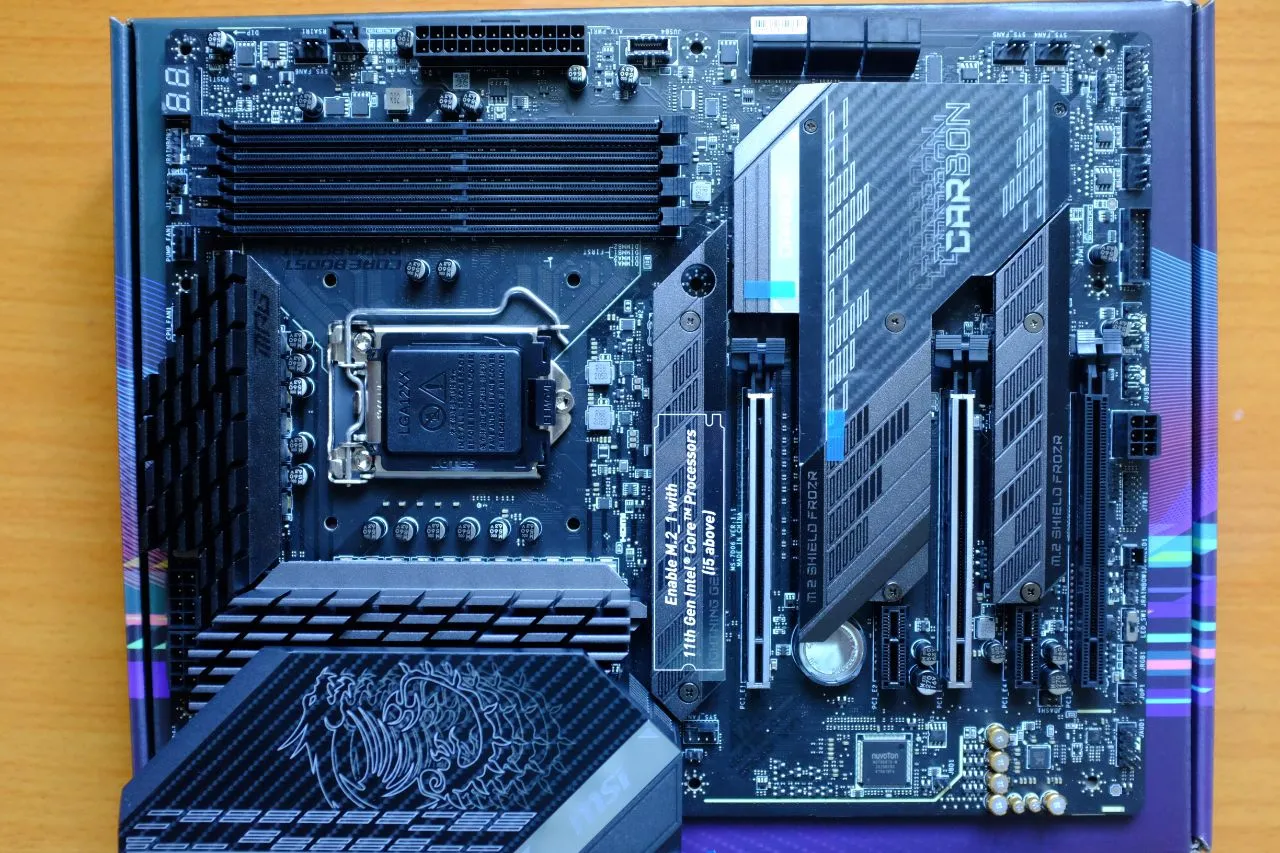

The motherboard itself features the signature black color of the Carbon series with a more aggressive design compared to the mid-range MSI MAG Z590 Tomahawk WIFI. A large central heatsink covers the VRMs, ensuring efficient cooling. MSI has thoughtfully separated the heatsinks for the two primary M.2 slots, allowing easy access without removing the larger heatsink assembly.

MSI MPG Z590 Gaming Carbon Wifi Heatsinks

These heatsinks come pre-applied with high-performance thermal pads for optimal heat transfer from the M.2 SSDs. This is especially useful for high-speed NVMe drives, although users with pre-installed heatsinks on their SSDs can easily remove the included ones.

PCIe and Power Delivery

The two primary PCIe slots are reinforced with steel armor for added durability and feature larger retention clips to support even the heaviest graphics cards. The inclusion of two reinforced PCIe slots suggests support for multi-GPU configurations like NVIDIA SLI or AMD CrossFire, although these technologies are less prevalent today.

MSI MPG Z590 Gaming Carbon Wifi PCIe Slots

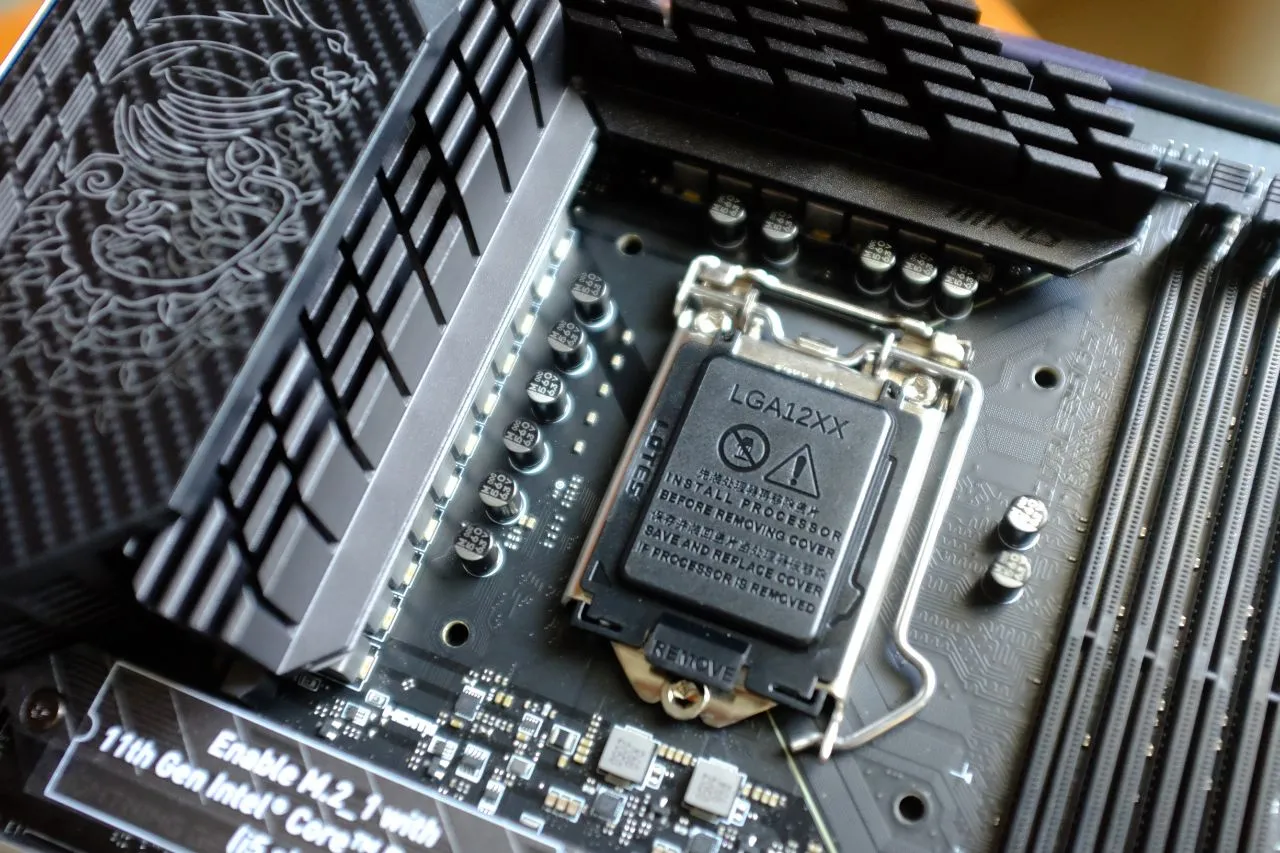

MSI has implemented a robust 16+1+1 dual-channel power delivery system with an oversized heatsink to keep temperatures under control. This configuration is more than capable of handling Intel’s 11th generation processors, even at high boost clocks, ensuring sustained performance under load.

MSI MPG Z590 Gaming Carbon Wifi Power Delivery

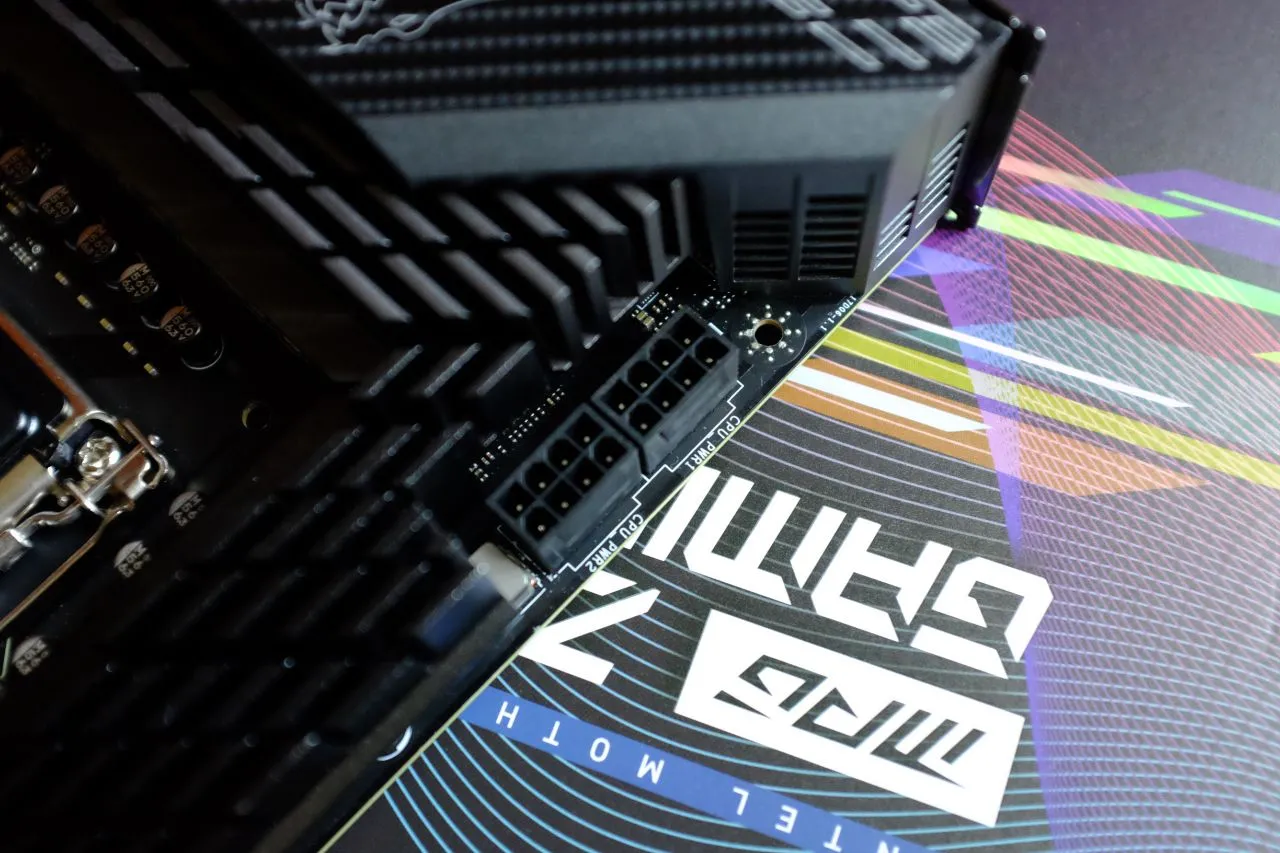

Two 8-pin CPU power connectors further enhance power delivery, providing ample headroom for overclocking enthusiasts.

MSI MPG Z590 Gaming Carbon Wifi Power Connectors

Audio and Connectivity

The audio section is isolated from the rest of the board and features dedicated components, including high-quality Nichicon audio capacitors, for a cleaner sound compared to integrated solutions.

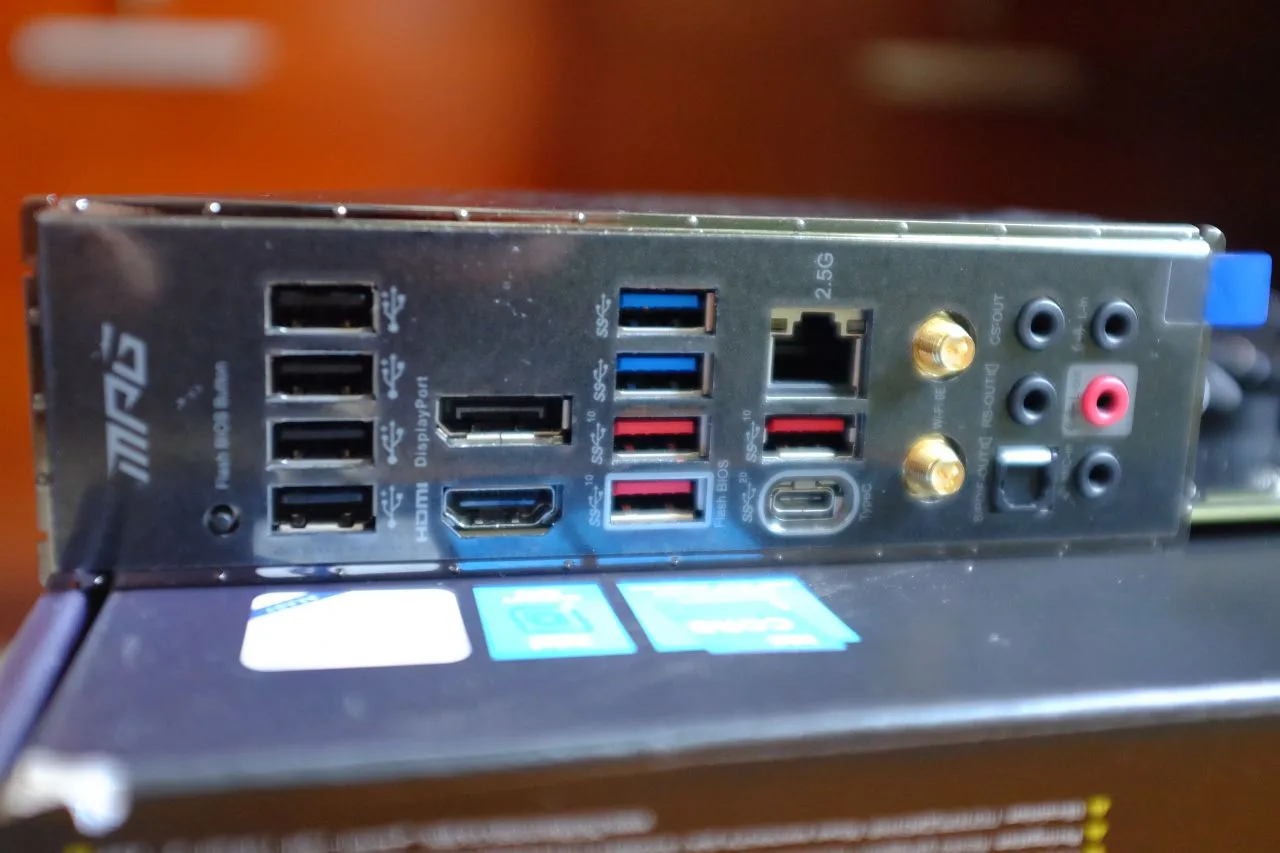

The MPG Z590 GAMING CARBON WIFI offers both high-speed wired and wireless connectivity. It boasts Wi-Fi 6E support with speeds up to 2400Mbps and a 2.5G Ethernet port. MSI’s LAN Manager software allows users to prioritize network traffic, ensuring optimal performance for online gaming.

MSI MPG Z590 Gaming Carbon Wifi Connectivity

Additional Features and Conclusion

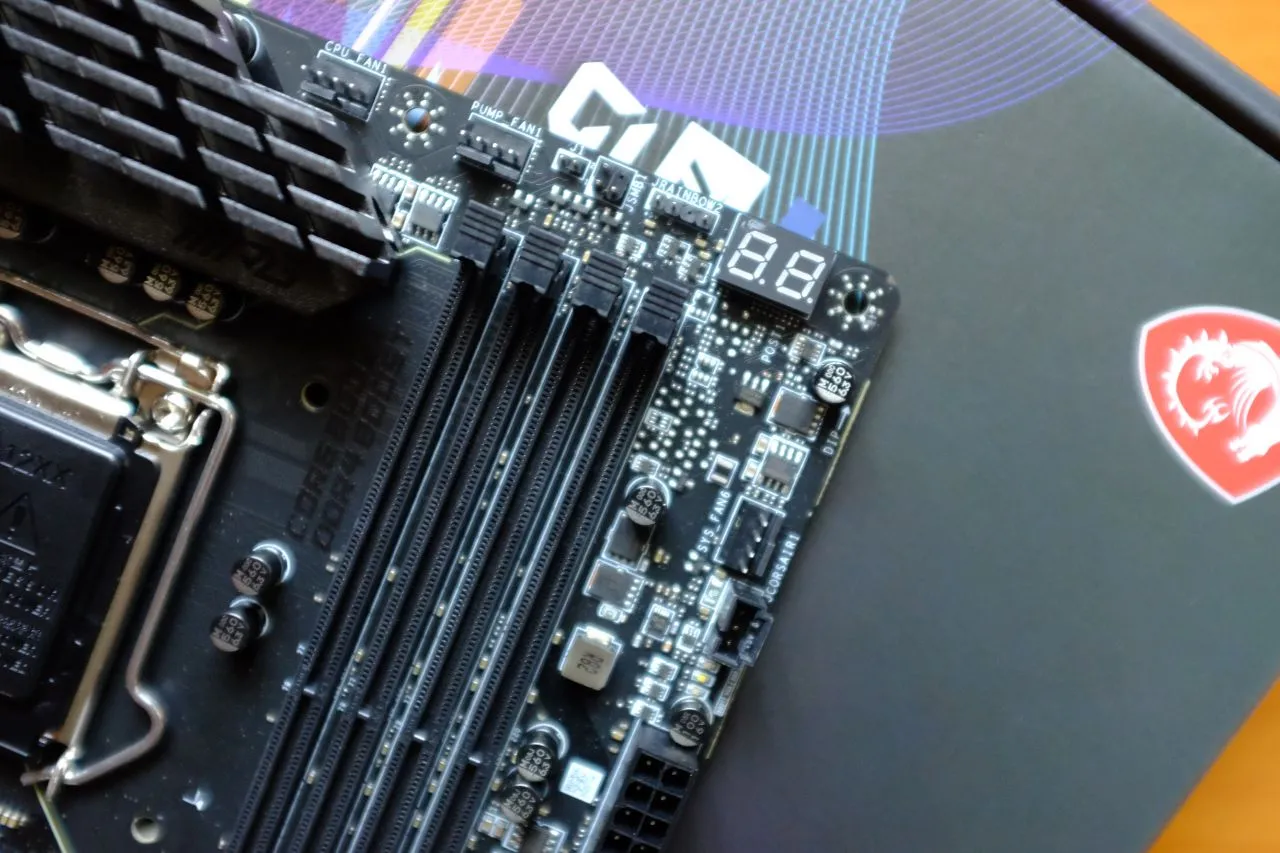

The motherboard also includes features like a debug LED and support for external pump headers for custom water cooling loops.

MSI MPG Z590 Gaming Carbon Wifi Additional Features

The MSI MPG Z590 GAMING CARBON WIFI is a premium motherboard packed with high-end features and robust performance, making it an excellent choice for demanding gamers and enthusiasts looking to build a powerful and future-proof PC.
