The motherboard market has seen a simplification of chipset offerings from both AMD and Intel in recent years. This has led manufacturers like MSI to broaden their product lines to cater to a wider range of user needs. MSI’s MPG series, known for the popular Carbon model, has expanded with the introduction of the MSI MPG Z690 Force Wifi, targeting a broader audience than the gamer-focused Carbon. This review explores the features and performance of this new motherboard.

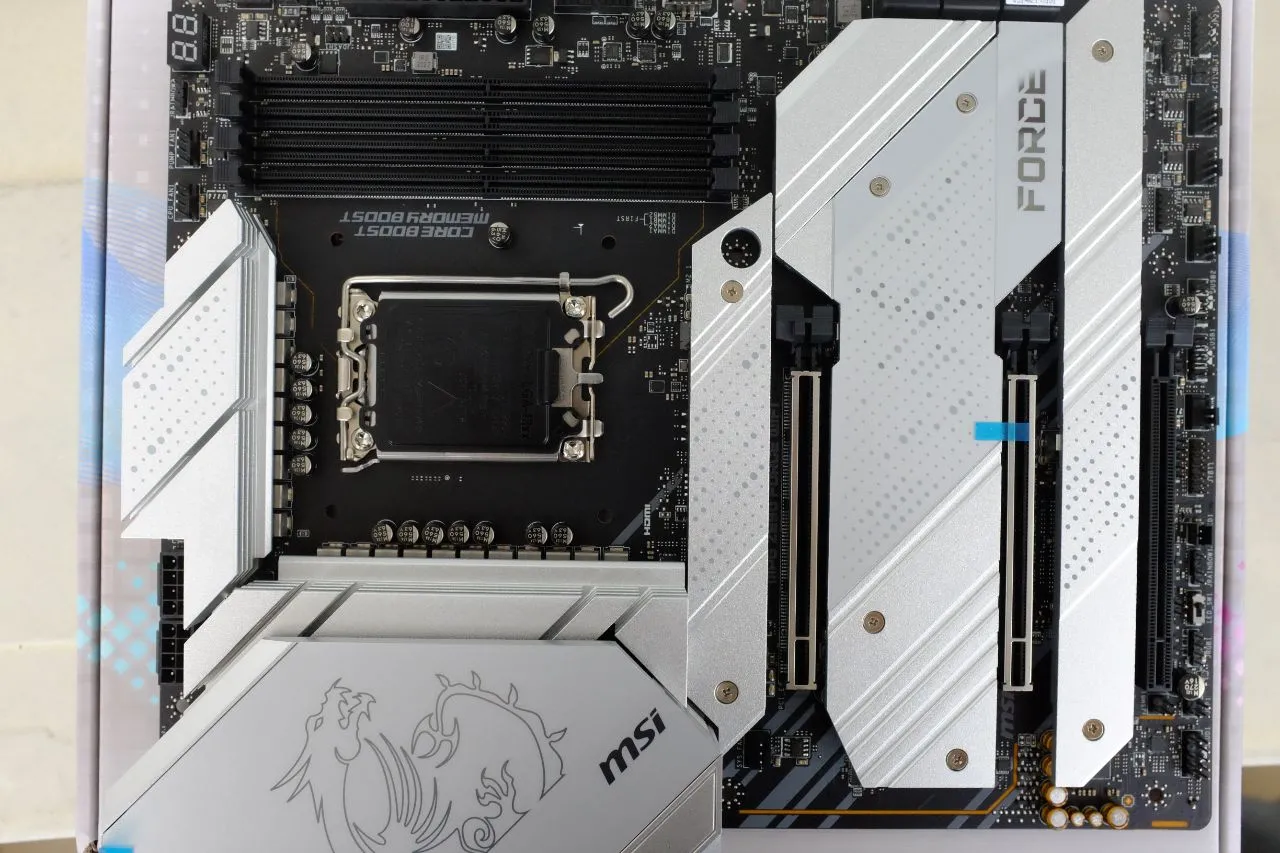

MSI MPG Z690 Force Wifi Motherboard

Design and Features: A Carbon Alternative

The MSI MPG Z690 Force Wifi shares a striking resemblance to the MSI MPG Z690 Carbon Wifi, effectively presenting itself as a redesigned version with minor adjustments. The packaging, for example, features a similar design but utilizes an off-white color scheme with blue accents, contrasting the Carbon’s dark blue theme. The rear of the box is more streamlined compared to previous Z590 motherboard packaging.

MSI MPG Z690 Force Wifi Packaging

Both the Force and Carbon models share key features such as an 18+1+1 power phase design, PCIe 5.0 support, and a USB 3.2 Gen 2 2×2 port offering speeds up to 20Gbps. Notably, the Z690 Force Wifi now includes Wifi 6 connectivity, a significant upgrade from its Z590 predecessor and in line with current market trends, even in budget-friendly models like the MSI MAG Z690 Tomahawk Wifi DDR4.

Unboxing the MPG Z690 Force Wifi reveals further similarities to the Carbon, including the familiar triple heatsink design for the M.2 slots and chipset. The primary visual difference lies in the silver aluminum finish of the heatsinks, contrasting the Carbon’s black aesthetic.

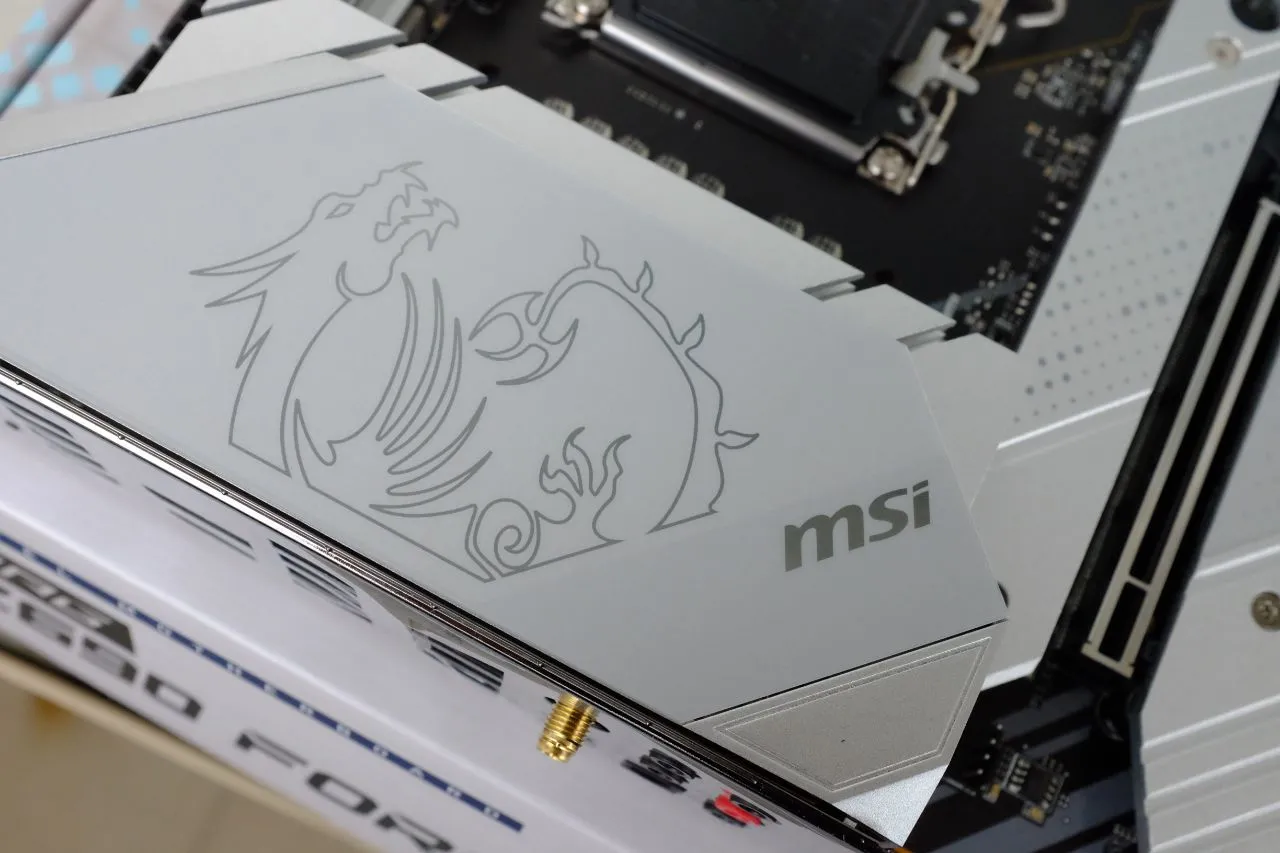

MSI MPG Z690 Force Wifi Heatsinks

Performance and Connectivity: Ready for High-End Hardware

The Force Wifi boasts a robust VRM heatsink designed to handle the power demands of Intel’s 12th generation CPUs, even the flagship Core i9 12900K. This substantial cooling solution surpasses even those found on high-end AMD Ryzen 9 processors.

The board features three PCIe slots in a 16x-8x-8x configuration, supporting AMD CrossFire for dual graphics card setups. The primary PCIe slots are reinforced with steel for added durability and reduced electromagnetic interference. MSI has thoughtfully spaced these slots to accommodate large, heavy graphics cards while ensuring adequate airflow.

MSI MPG Z690 Force Wifi PCIe Slots

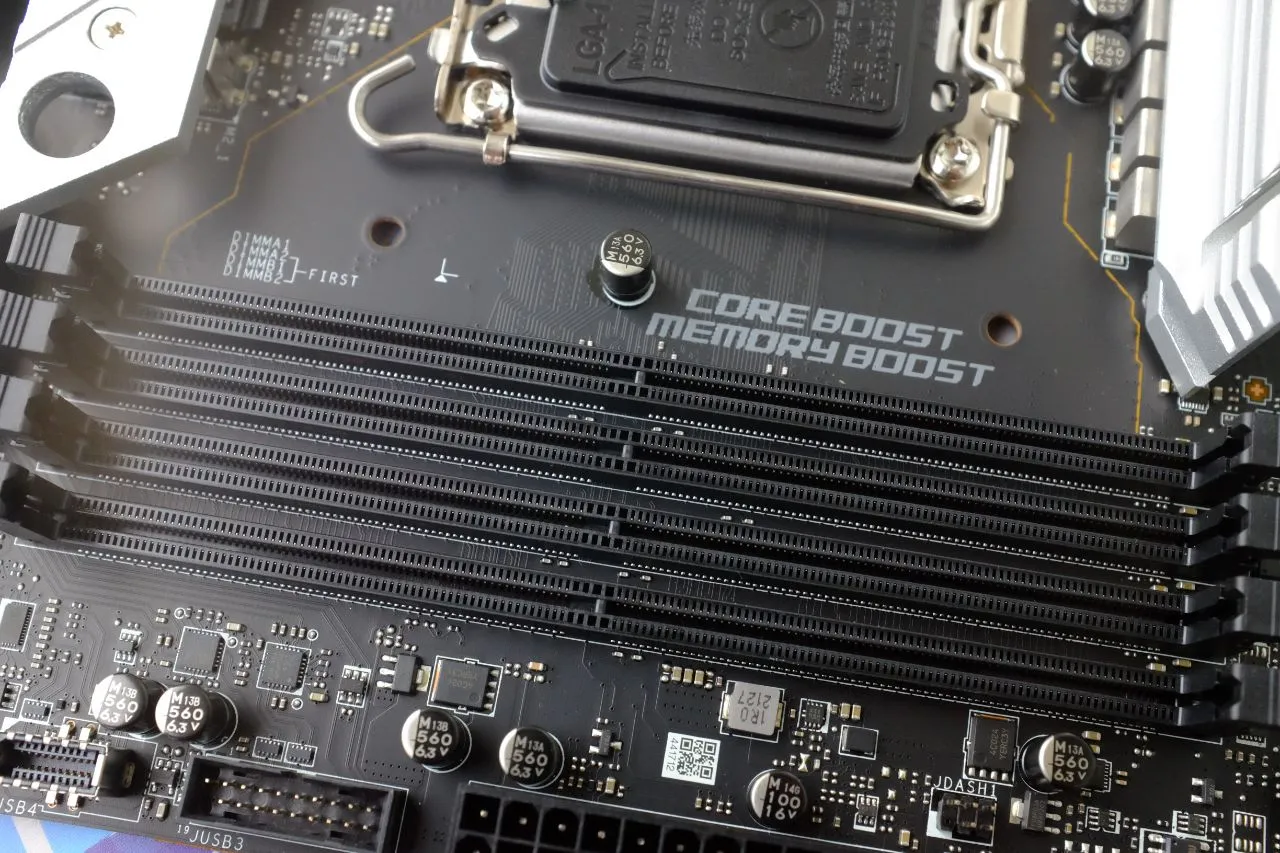

As an MPG series motherboard, the Force Wifi is equipped with advanced DDR5 RAM support, including Memory Boost and Memory Try It! technologies. Memory Try It! allows users to experiment with pre-tested MSI OC Lab settings for various RAM modules, optimizing speed and latency beyond standard XMP profiles. Unlike some motherboards limited to 5800MHz or 6000MHz, the MPG Z690 series supports DDR5 speeds up to 6600MHz.

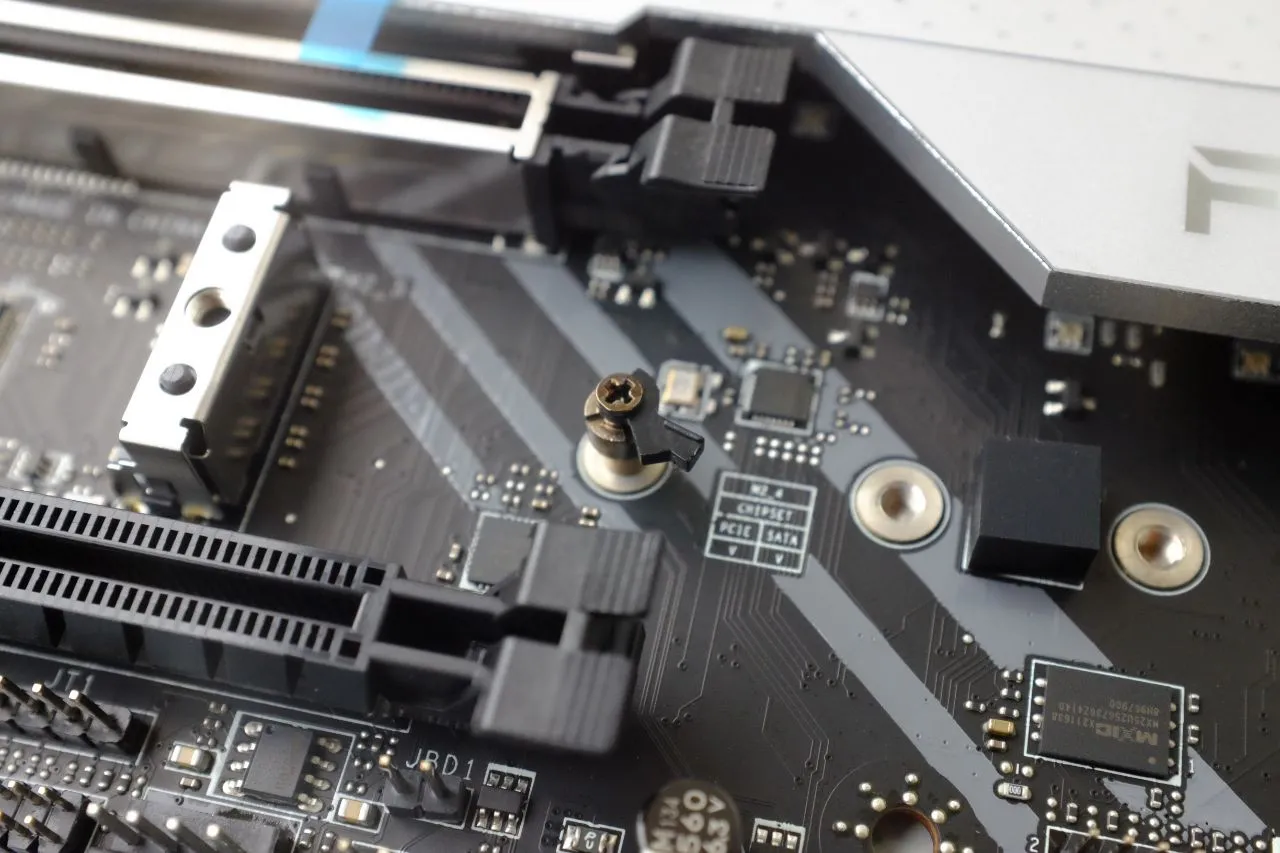

Storage is handled by four PCIe 4.0 M.2 slots, each featuring EZ M.2 Clips for tool-less installation. Shield Frozr heatsinks on each slot help maintain optimal SSD temperatures, preventing performance throttling during extended use.

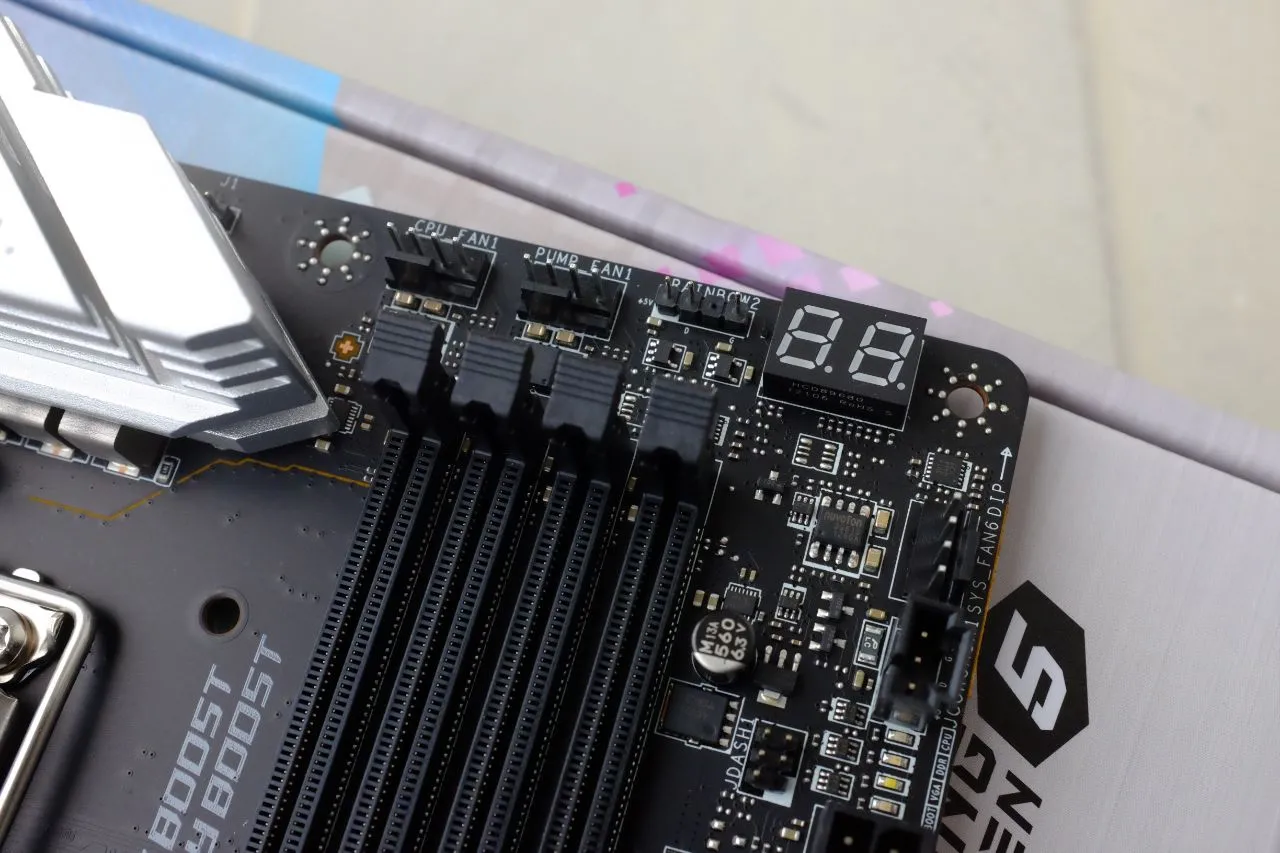

Like the Carbon, the Force Wifi includes a debug LED display for system monitoring, particularly useful for overclocking. A Flash BIOS button simplifies BIOS updates and recovery.

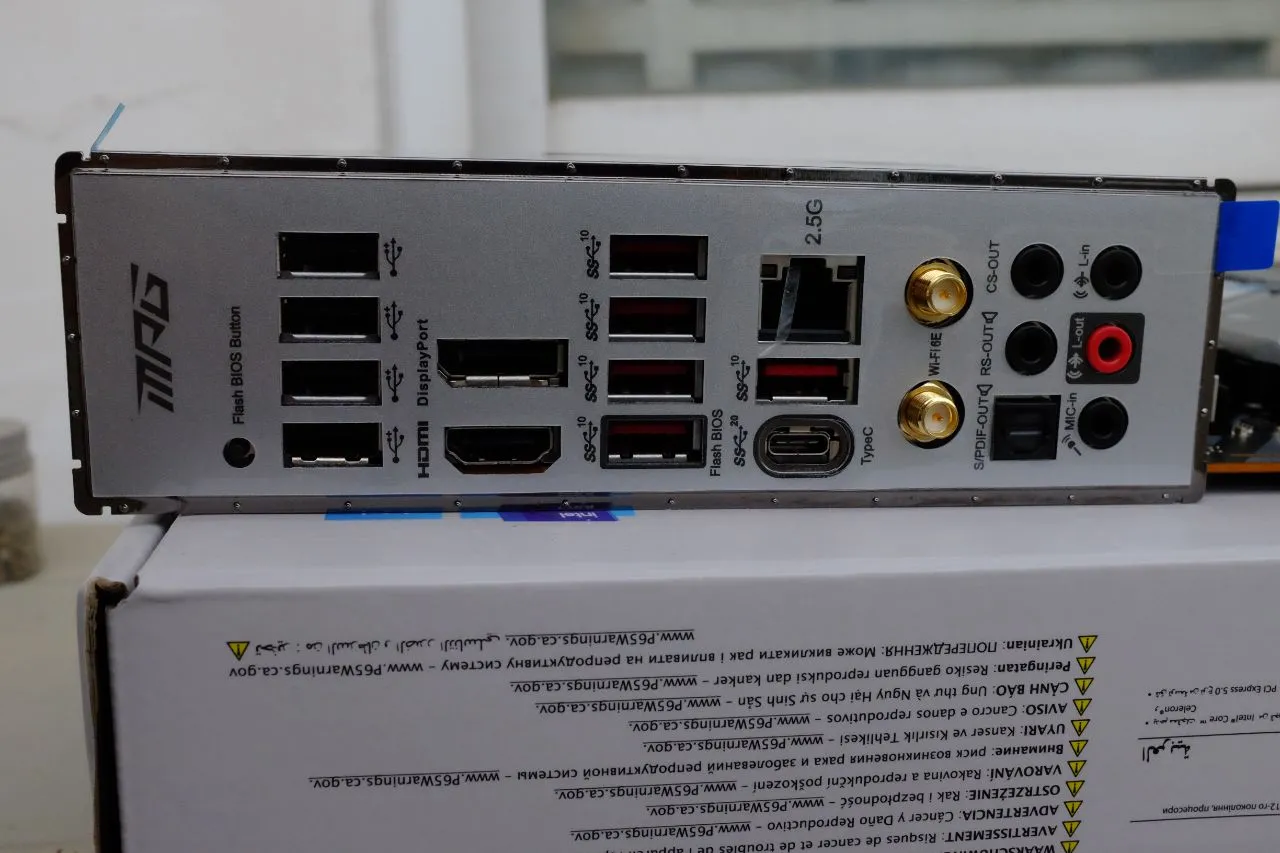

MSI MPG Z690 Force Wifi Flash BIOS Button

Conclusion: A Solid Choice for Performance and Value

The MSI MPG Z690 Force Wifi stands as a compelling alternative to the Carbon, offering a similar feature set with a distinct aesthetic. The minor price difference between the two models makes the choice primarily a matter of personal preference. With its robust power delivery, advanced connectivity, and support for cutting-edge hardware, the Force Wifi is a solid foundation for a high-performance 12th Gen Intel system.
